How to add geo-data to the platform

Process overview

Updating or adding a data layer in an MSP Challenge Simulation Platform Edition is a two-fold process. On the one hand, the dataset needs to be prepared to integrate the platform; on the other hand, the server needs to know that the new dataset needs to be added to that specific Edition of the MSP Challenge. The so-called “configuration file” has the role of defining which layers, visualisation options, and models are used in each Edition of the MSP Challenge. To update or add a new data layer in an MSP Challenge edition, both the data layer and the configuration file containing that data layer’s definitions are uploaded in a web-tool specially designed for the effect – GeoImport [1].

How to deal with the configuration file is covered in Customise your session. In this section we will cover how to prepare your geo-data to integrate it in the MSP Challenge Simulation Platform.

Formats accepted

The MSP Challenge accepts both vector and raster formats. For vector data, the platform uses shapefiles[2], and for raster data GeoTIFF[3] (Geographic Tagged Image File Format).

To use shapefiles in the platform only the files with extension .shp, .dbf, and .shx are needed. The .TIFF file is enough in case of raster files.

Data preparation

General

Some of the data preparation aspects apply to both vector and raster data and are explained here. For specifics on vector or raster data please refer to the respective sub-sections below.

  • Coordinate Reference System and Projection

Always save your geodata files using the coordinate reference system and projection used in the platform: ETRS89 and Lambert Azimuthal Equal Area (EPSG:3035).

  • Geographical area coverage

Are you working on an existing edition of the MSP Challenge?

Make sure that the data layer you are adding to the platform only covers the geographical area of the respective edition, check the table below for each edition's detail on the area covered.

Bounding boxes of each existing MSP Challenge Edition (using EPSG:3035)

MSP Challenge Edition South North West East
North Sea 2835279 4500000 2921000 4801000
Baltic Sea 3767500 3327500 3767500 6120600
Clyde Marine Region 3627000 3790000 3256000 3478000
Adriatic Sea 1503000 2700000 4040000 5730450

Are you creating a new MSP Challenge Edition?

When creating a new MSP Challenge Edition the first step is to define the "play area". The play area is the total geographical area that will be shown in the platform, it works like a bounding box for all the geodata the MSP Challenge Edition will have. This step is crucial for the whole project. Take into account the coutries involved in the project and their respective planning areas at sea, make sure to include them. The play area needs to follow the naming convention: _PLAYAREA_XX, where XX are the first letters of the region corresponding to that Edition. For example, the Adriatic Edition’s play area is “_PLAYAREA_AS”. The figure below shows the countries and planning areas considered when defining the play area for the MSP Challenge Adriatic Edition. In this case, the play area is much bigger than needed for the Adriatic Sea. This is to make it easier to expand the Adriatic Edition in the future to include the Ionian Sea (South of the Adriatic Sea).


Vector
  • Geometry

The shapefile itself can’t have invalid geometries; the platform cannot deal with invalid geometries. Remove duplicated geometries. If possible, avoid subtractive polygons as this can originate problems in the platform. Simplify geometries for use in the platform; aim for files (.shp) to have less than 100 KB.

  • Categories

If the dataset has categories, for instance, in a data layer about pipelines, we can have different categories, such as “active” or “inactive”. These are mapped in the platform by using “types”. A field named “type” (all low caps) needs to be introduced in the attributes table; this field needs to store integer values from 0 to n; each value will correspond to a type. It is good practice to also add a “type_1” field with the category description. The type’s name(s) and visualisation options are defined in the Edition’s configuration file (see Customise your session). Check if the types in the configuration file correspond to the types used in the new dataset and update if needed.

  • Naming convention

Use the following name convention for vector layers: “RR_Layer_Name”, in which RR are the first letters of the region, for instance, AS for the Adriatic Sea.

Raster
  • Raster values

In the MSP Challenge, the rasters’ cells values range from 0 (minimum or no data) to 255 (maximum). To make sure a raster file is displayed correctly in the platform, you need to know the minimum and maximum values in the raster file and optimise its visual settings before saving it as a tiff (rendered image). In the saved image, verify if the “no data” or zero values correspond to black and the maximum values to white. In the configuration file, the layers’ types need to be defined to correspond to the interval values that we want to show in the platform (see configuration file).

  • Naming convention

Use the following name convention for raster layers: “RR_Layer_Name_raster”, in which RR are the first letters of the region, for instance, AS for the Adriatic Sea.

Upload the data in MSP Challenge's GeoServer

Before uploading a layer in the MSP Challenge's GeoServer you need to update the configuration file, ensuring that the layers being loaded are included in the file. See how to download the default configuration file and update it at Customise your session (Sections 1, 1.1 and 1.3.4 are the most relevant in this case).

To upload a layer in MSP Challenge's GeoServer use the GeoImport tool created by BUas, accessible from mspchallenge.info/geoimport. You do need to log-in with your MSP username and password. If you don't have an account yet, you can create one by clicking on "register" on the top menu. You will also need permission to use it for on a specific edition (North Sea, Baltic Sea, ...). Get in touch with us if you need this.

Browse or drag the raster file(s) or shapefile(s) - you need the files with the extensions .shp, .shx and .dbf, and finally the configuration file in the "actions" box (highlighted in figure below).

The web tool guides you through the process and makes a series of verifications to make sure the dataset complies with the requirements. For instance, the use of multi-polygons, multi-lines, or multi-points is not supported, GeoImport will warn you that it has broken all multi-polygons features into single polygon features. GeoImport will also assign an identification number called MSP ID to each feature (in case of Shapefiles); those are needed to track changes in geometries during planning in the platform and for the simulations to run.

At the end you have the possibility to send your layers to the public BUas GeoServer. After GeoImport has done this for you, one more step is needed before users can access the changes in the updated edition of MSP Challenge. The configuration file needs to be added to your Server Manager and a new session needs to be set up. Section 1.5 of Customise your session guides you through that process.



Upload the data in your own GeoServer

Suppose you prefer to use your own GeoServer to store the prepared geodata layers. In that case, you only need to use the GeoImport for the vector layers. GeoImport will automatically check if the layers are ready for MSP Challenge usage and assign the right features' identifier. There is a critical difference in the GeoImport process if you want to use your own server; on "Step 4 - review and select files for upload", do NOT press "Send selected files to BUas' public GeoServer". Instead, download all Shapefile's files (see image below), and push them to your own GeoServer yourself. We assume you know how to do this.

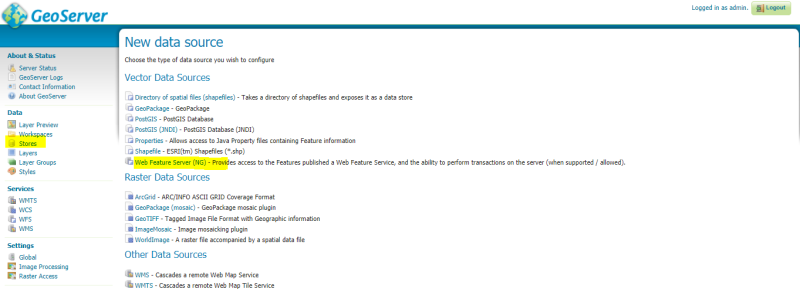

Another thing that will be different is when you create a session. There are tutorials regarding how to create a new session here. To use your own GeoServer, you will have to add that GeoServer's details in your Server Manager first, and then create the session using those GeoServer details. See the image gallery below.
